Conprinta PVS

Practical extension for digital roll-to-roll printing systems.

The CONPRINTA PVS was developed as an extension especially for roll print machines and combines the advantages of digital printing with the potential of flexo printing. It keeps costs low even when inking large areas, is impressively fast and easy to configure, and runs high-quality prints with precision. New printing orders can be set up while another order is running, so stoppages are avoided. Our advanced between-deck drying technology means that orders can be processed in record time.

  • A special ink printing option also keeps you ahead of the competition.
  • The CONPRINTA PVS is available in several widths and can be combined with all leading digital printing systems.

Contact

Man in the corridor.

Leonard Duerr

+49 . 5551 . 91000-12

PVS flexographic printing system

    PVS
Working Width, [mm]   1100 - 2800
Repeat Length, min. [mm]   965
Repeat Length, max. [mm]   4550
Print Registration [mm], ink +/-0,1
Print Registration [mm], varnish +/-0,2
Incremental belt steps 7.00 mm
Paper Range [gsm /m2] 80 - 400
Line Screen /
Print Resolution, max.  [lpi]
60 lpc (150 lpi)
Customer Plate Options elastomer or photopolymer
Ink / Varnish water-based
Mechanical Speed,
max.  [m/min.]
450
Dryer infrared, hybrid or UV cure
Register control sensor- or camera based
Consumables beltmaterial on reel or as sheet

CONPRINTA/HP Partnership

As an official SmartStream Partner, CONPRINTA is the leading provider of flexographic coating and printing applications for all HP PageWide T Series presses.

PVS1700

PVS_HP_CONPRINTA_Drawing

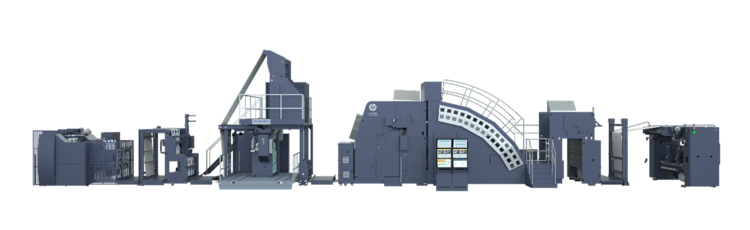

Example configuration: PVS1700 Inline with a HP T700i.
